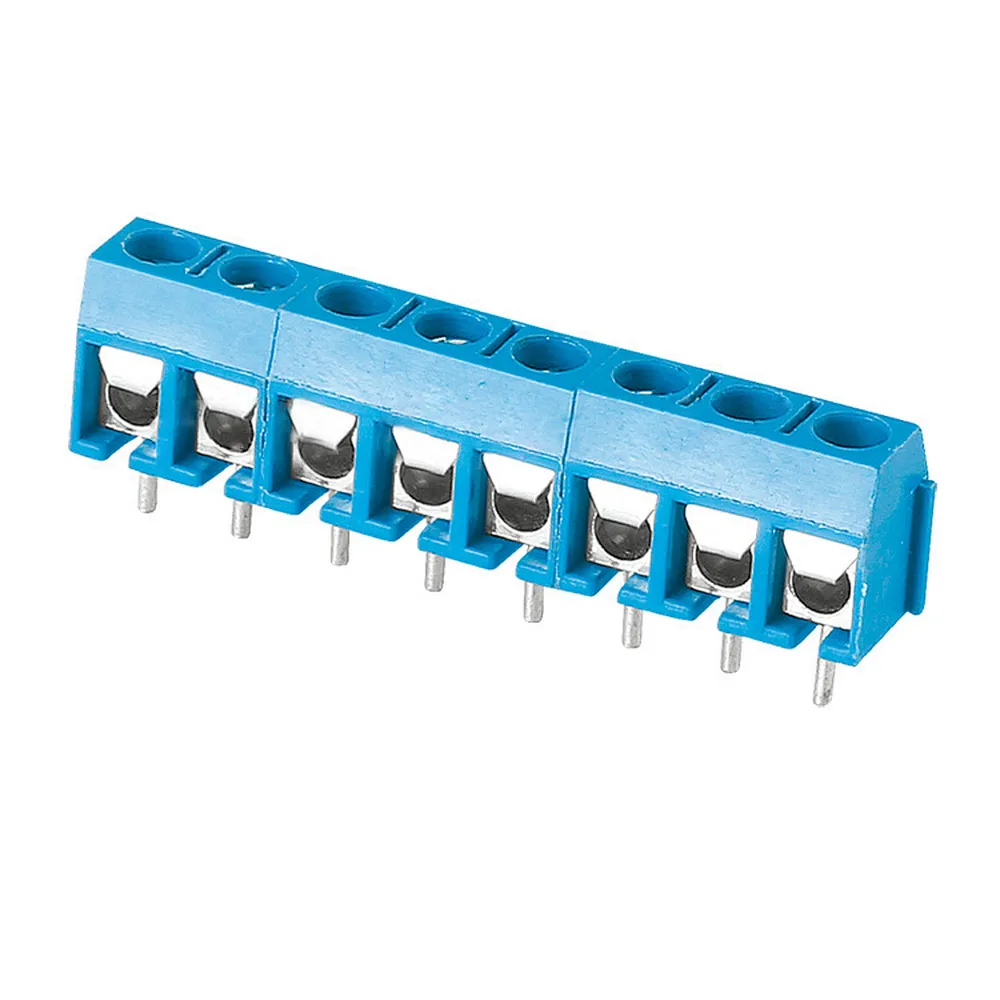

Wire Guard Terminal Blocks-pitch 5.0
JM301-5.0
Quantity


Material
ScrewM2.5,steel Zinc plated
Wire guardPhosphor bronze,Ni plated
Pin headerBrass,Tin plated
PlasticPBT,UL94V-0
Electrical
StandardULIEC
Rated voltage250V250V
Rated current16A24A
Wire range22-14AWG1.5mm2
Contact resistance20mΩ
Insulation resistance500MΩ/DC500V
Withstand VoltageAC2000V/1Min
Mechanical
Temperature range-30°C~+120°C
Max.Torque0.4Nm (3.5Lb.in)
Strip length4.5-5mm
Size
Pitch5.0mm(.197")
poles2P-24P
